瀏覽次數:302by:峻廷工業
1.採用砂布輪切削.
2.適用於鋼鐵、鑄鐵及熱處理另件等材質
3.不適用於鋁材、軟質鐵材,會有毛邊.
4.如工件本身彎曲,倒角後倒角面也會隨工件彎曲,較不均勻.
A. Adopt with the disk esper emery wheel chamfering.
B. Available for any steel, casting iron materials; or which will cause the rough surface happened.
C. It is not smoothly after chamfered if the workpeice itself is not straight.

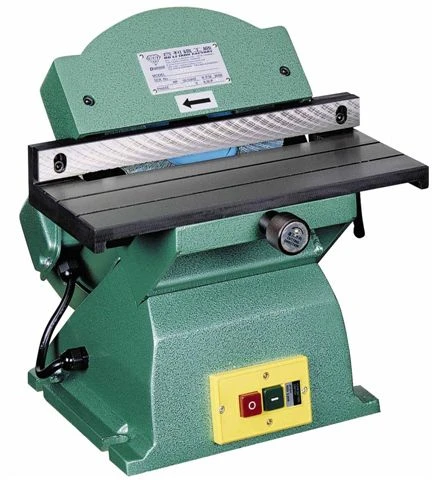

MODEL JT-320B
Machine Size L320×W400×H370mm
Voltage 3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed 3500r.p.m
Height of bevel 0-3mm
Bevel angle 45 degree
N.W./G.W. 25kgs/27kgs
Packing 46×36×38cm
Measurement 2.33Square feet
Motor 1HP
Track Size 320×120×12mm,320×28×12mm
