特點Features:
1.採用盆型砂輪切削,針對熱處理或特殊處理的工件做倒角.
2.如用於一般鐵材會起毛邊
3.倒角後工件成45度面
A. Adopt with bowl type wheel mill cutting. Special for chamfering the workpeice of heat
treatment or particular process.
B. It may be caused rough sureface, if processing for general iron materials.
D. Workpeice with angle 45 degree after chamfered.

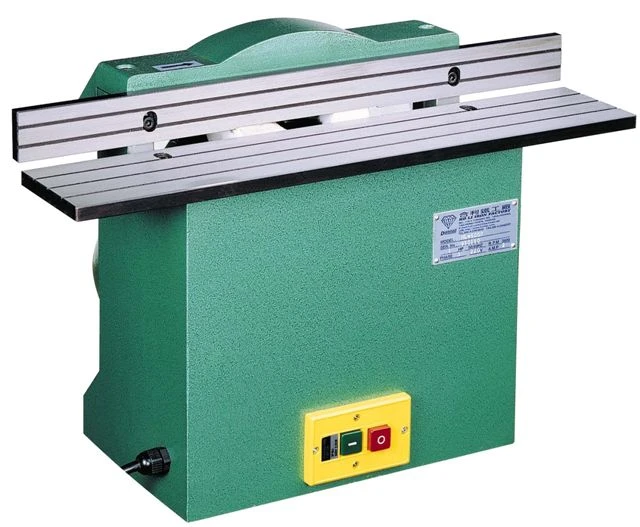

MODEL JT-500BR
Machine Size L500×W420×H350mm
Voltage 3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed 3500r.p.m
Height of bevel 0-3mm
Bevel angle 45 degree
N.W./G.W. 28kgs/31kgs
Packing 55×44×38cm
Measurement 3.4Square feet
Motor 1HP
Track Size 500×100×12mm,500×40×12mm
