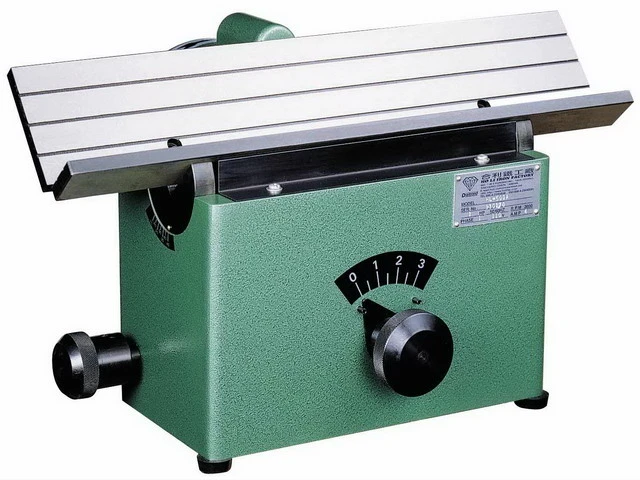

JT-500A側銑刀式倒角機

特點Features:

1.採用側銑刀原理,刀片(共六片)替換迅速。

2.適用於各種鋼、鐵、鑄鐵及非金屬材質。

3.軌道座可調整角度、倒角後工件可成15度~45度的不同需求。

A. Adopt with side mill cutting. Quick exchange For knife insert

B. A vailable for chamfering steel,iron,casting iron and non-metal materials.

C. Swivel table for chamfering workpeice with different angle during 15~45 degree.

D. CE version is available.

MODEL JT-500A
Machine Size L500×W350×H320mm
Voltage 3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed 3500r.p.m
Height of bevel 0-3mm
Bevel angle 15~45 degree
N.W./G.W. 26kgs/29kgs
Packing 55×42×32cm
Measurement 2.74Square feet
Motor 1HP
Track Size 500×100×12mm,500×40×12mm
