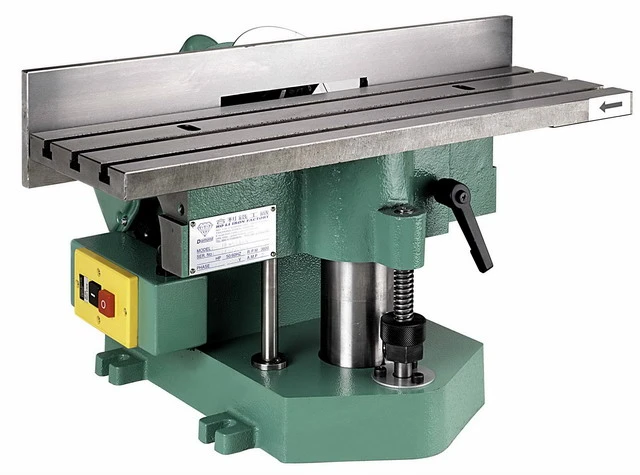

萬能平面銑刀倒角機

特點Features:

1.採用平面銑刀切削。

2.適用於各種材質。

3.倒角後工件成45度面。

4.可利用T型槽治具不傷及表面之倒角(TYPE 1)

及利用軌道上下作T字型工件之倒角(TYPE 2)。

A. Adopt with the face mill cutting.

B. Available for all kind of materials.

C. Workpeice with angle 45 degree after chamfered.

D. The T-slot table can option with T jig (Type 1)

 to avoid the surface crashed.Also, to move up and d

own for chamfering the T workpeice by track (Type2)

E. CE version is available.


MODEL JT-500AG
Machine Size L500×W430×H300mm
Voltage 3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed 3500r.p.m
Height of bevel 0-5mm
Bevel angle 45 degree
N.W./G.W. 48.5kgs/58kgs
Packing 50×60×40cm
Measurement 4.4 Square feet
Motor 1HP
Track Size 500×150×20mm,500×92×12mm
